Product Code: 11008

Ages from 8+

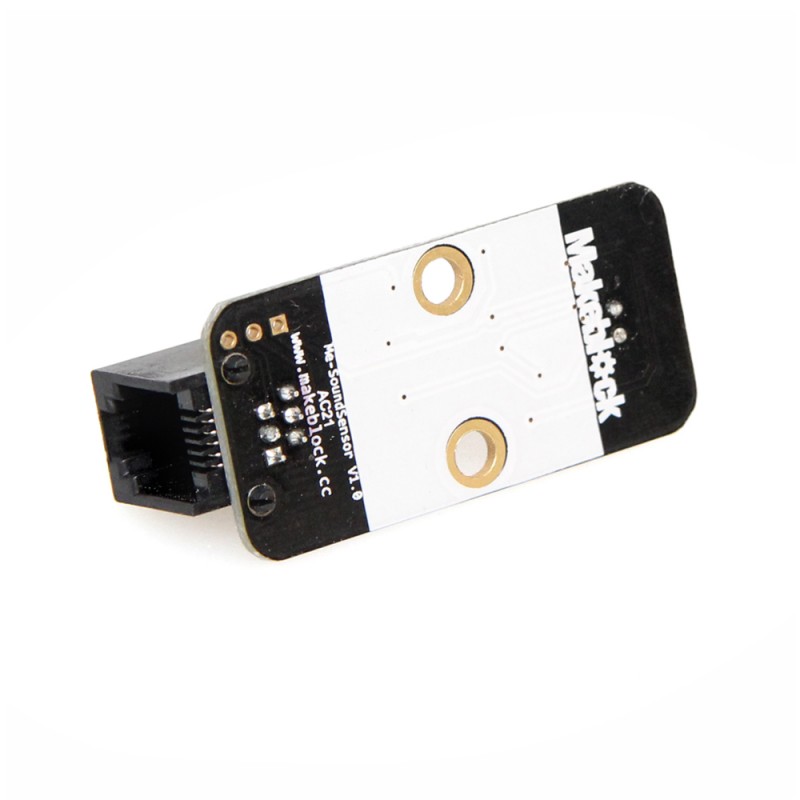

Makeblock Me Sound Sensor V1

Me Sound Sensor is designed to detect the intensity of sound in the surrounding environment. You can use it in sound interative project such as a voice opera...
Read more
Price: 7.90 € 7.9 EUR
12 In Stock, Delivery In 1-3 Days
Free shipping from 49 €
Free 14 Day Return
Makeblock on tööstusliku tugevusega robootikaplatvorm, mis sobib nii algajale kui edasijõudnule.
Related Product Tags
Related Product Tags
Me Sound Sensor is designed to detect the intensity of sound in the surrounding environment. You can use it in sound interative project such as a voice operated switch or build a dancing robot with music. Based on the power amplifier LM386 and the electret microphone, it can output analog values ranging from 0 to 1023. Due to a potentiometer, you can adjust the sensitivity according to different situations.

Features:
* Detect the intensity of sound in the surrounding environment
* Selectable sensitivity with a potentiometer
* A state indicator and a power indicator
* 16mm interval M4 mounting holes, compatible with Makeblock beams
* 2.54mmbreakout pins for connecting with jumper wires
* Easy wiring with 6 Pin RJ25 interface

Specification:
* RatedVoltage: 5V
* Signal type: Analog(A0 pin output about 483(quiet), from 483 to 1023(noise)), A1 pin output about 0(quiet), from 0 to 1024(noise). The sensitivity of A0 pin is higher than A1 pin.
* Size:24x48x 32mm(Length x Width x Height)"
Makeblock on tööstusliku tugevusega robootikaplatvorm, mis sobib nii algajale kui edasijõudnule.
Related Product Tags
Related Product Tags
Product Makeblock Me Sound Sensor V1 details
Target Group
Age: 8+
Weight
Weight: 0.01 kg
Codes
Product Code: 11008
More data
Manufacturer: Makeblock
Not Suitable WARNING! Not suitable for children under 3. Small parts. Risk of suffocation.
